Transmission Gear Ring Rough Gear Teeth Milling Large Size ZG42CrMo Quenching

Brand Name : YIZGEAR

Model Number : GG23051104

Place of Origin : CHINA

MOQ : 1 Piece

Price : $1500/ Piece

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 20 Pieces/Month

Delivery Time : 90 Days

Packaging Details : Wooden Crate/Pallte

Material : ZG42CrMo

Heat Treatment : Quenching & Tempering

Gear Type : Spur Gear

Production Time : 90 Days

Press angle : 20°

Tip Diameter : 3422

Weight : 2840 Kg

Contact Now

Customized Girth Gears For Ball Mill

Material: Casting Steel ZG42CrMo or ZG40CrNiMo

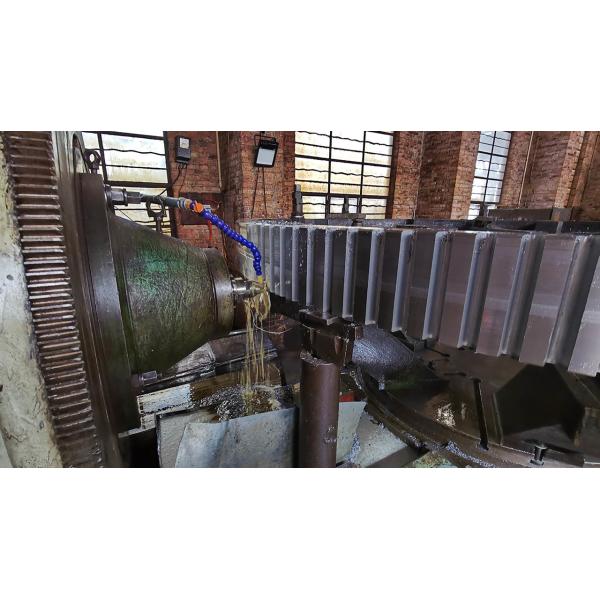

Rough Gear Teeth Milling Work

The heat treatment work will be after the rough gear teeth milling to ensure the hardness of the gear teeth.

Fine machining work after heat treatment

Then will be fine gear teeth cutting work

This parts is two segments assembled gear

Technical Specifications

Parameter Specification
Custom Made Available
Gear Profile Type Cylindrical Gears
Manufacturing Process Gear Milling/Gear Hobbing
Teeth Grinding Included
Module (M) 16.9326
Number of Teeth (Z) 152
Pressure Angle (α) 20°
Lead Angle Custom
Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching and Tempering
Surface Hardness 230-260 HB
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Transmission Gear Ring Rough Gear Teeth Milling Large Size ZG42CrMo Quenching

Production Process

Transmission Gear Ring Rough Gear Teeth Milling Large Size ZG42CrMo Quenching
